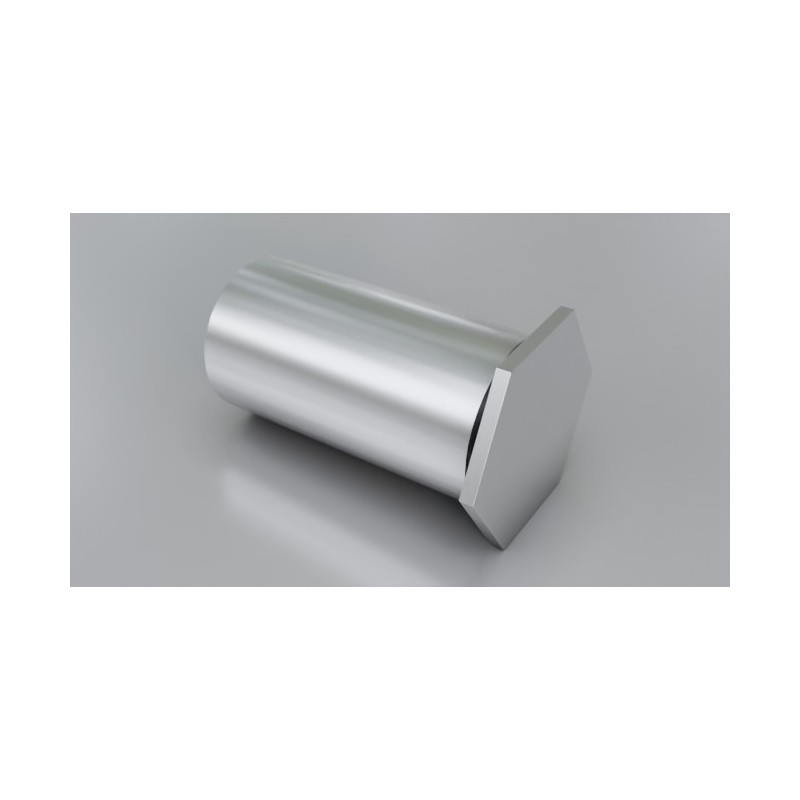

TR-BSO-M3-10

Chosen Specification

Reference: TR00027083-100

Old Web Reference: RP0000004757

Thread Size: M3

Standard: BSO

Material: Steel

Shank Code: 10

Length (L): 10 mm

Hole Diam. (B) (mm): 4.2 mm

Thread Length (L2): 4 mm

Min. Sheet Thickness (h): 1 mm

Hole Diam. (B): 4.22 - 4.3 mm

Distance from the edge (E): 6 mm

Clear Thread (D1): -

Diam. dk: 4.8 mm

Diam. d: -

Installation: 9.9 Kn

Torsional Resistance:

Torque out: 2.16 Nm

Pushout: 1050 N

Pull Through: 1470 N

Max Rec. Tightening Torque for Mating Screw: 0.55 Nm
